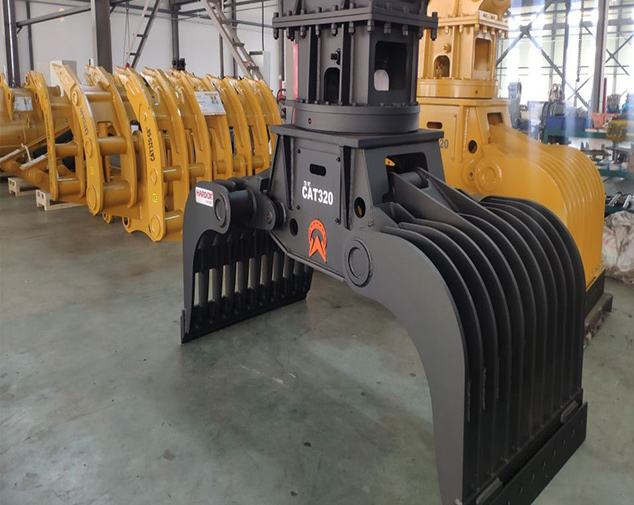

Sorting Grab
Specifications
| Item/Model | Unit | JSSG1400 | JSSG1800 | JSSG2200 | JSSG2300 |
| Suitable Excavator | ton | 6-9 | 9-16 | 18-26 | 28-35 |
| Weight | kg | 530 | 1130 | 1880 | 2410 |
| Width | mm | 1370 | 1860 | 2130 | 2470 |
| Heigth | mm | 620 | 850 | 1100 | 1380 |
| Opening | mm | 1400 | 1800 | 2200 | 2300 |
| Driving Pressure | bar | 180 | 260 | 320 | 320 |
| Driving Flow | lpm | 100 | 100 | 200-250 | 200-250 |
Benefits & Features
Applicable objects – all kinds of large-scale, bulk materials loading and unloading or handling operations.
Main features – using Q345 manganese plate steel, high strength and corrosion resistance; The pin is made of 42CrMo alloy steel,with built-in oll passage, high strength and good toughness; Rotary mator imported from Switzerland; The oil cylinder adopts honing tube, imported HALLITE oil seal, short working cycle and long life.
