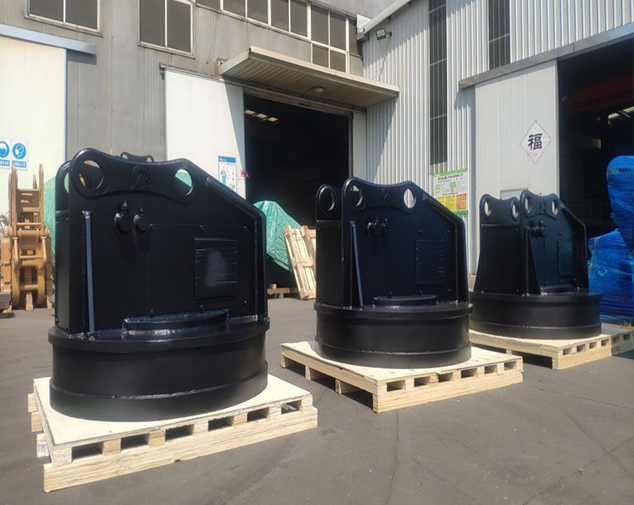

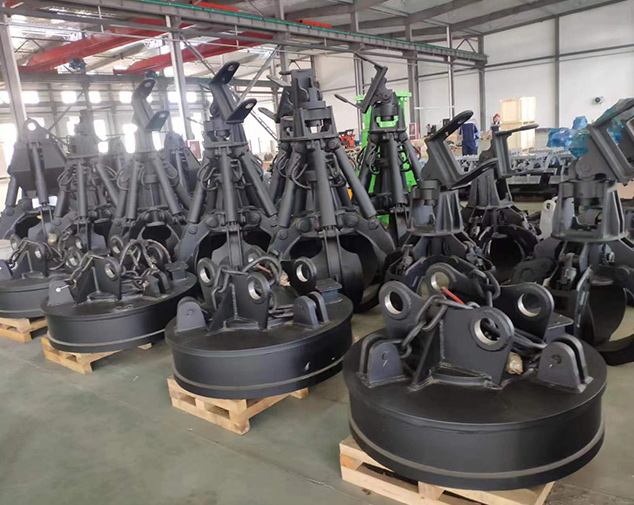

Hydraulic magnet lift
Specifications
Electromagnetic type
| Item/Model | Unit | JSEL1000 | JSEL1200 | JSEL1300 | JSEL1500 | JSEL1650 |
| Suitable Excavator | ton | 12-16 | 18-22 | 23-26 | 28-32 | 32-40 |
| Weight | kg | 1000 | 1400 | 1550 | 2300 | 2600 |
| Power | kW | 7 | 10 | 11.9 | 15.6 | 16.5 |
| Outer Diamete | mm | 1000 | 1200 | 1300 | 1500 | 1650 |
| Working Flow | lpm | – | – | – | – | – |
| Working Pressure | bar | – | – | – | – | – |
Hydraulic type
| Item/Model | Unit | JSMLBOO | JSML80OT | JSML1000 | JSML1000T | JSML1200 | JSML1200T | JSML1300 | JSML1300T |
| Suitable Excavator | ton | 12-16 | 12-16 | 18-24 | 18-24 | 26-30 | 26-30 | 30-40 | 30-40 |
| Weight | kg | 820 | 920 | 1200 | 1350 | 1650 | 2000 | 2000 | 2400 |
| Power | kW | 3.9 | 3.9 | 7 | 7 | 10 | 10 | 11.9 | 11.9 |
| Outer Diamete | mm | 800 | 800 | 1000 | 1000 | 1200 | 1200 | 1300 | 1300 |
| Working Flow | lpm | 90-110 | 90-110 | 100-140 | 100-140 | 130-170 | 130-170 | 160-200 | 160-200 |
| Working Pressure | bar | 190 | 190 | 200 | 200 | 210 2 | 10 | 250 | 250 |
Benefits & Features
Applicable objects – loading, unloading and handling of iron products.
Main features –: hydraulic generators are used to drive power generation without additional installation; Using Q345 manganese plate steel, high strength and corrosion resistance; Semi-permanent design reduces pipeline maintenance costs.
