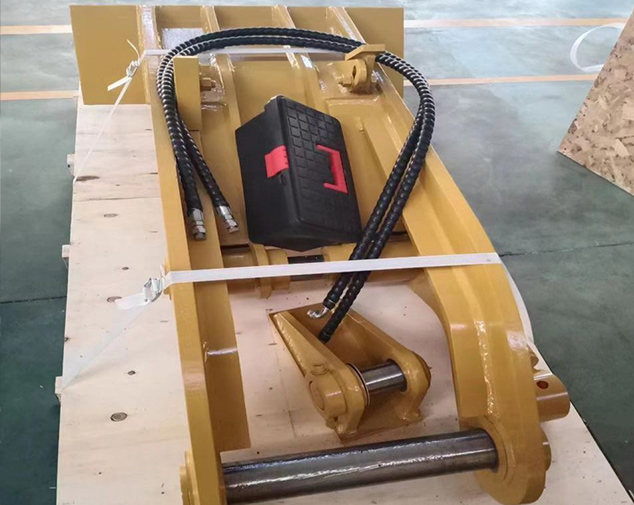

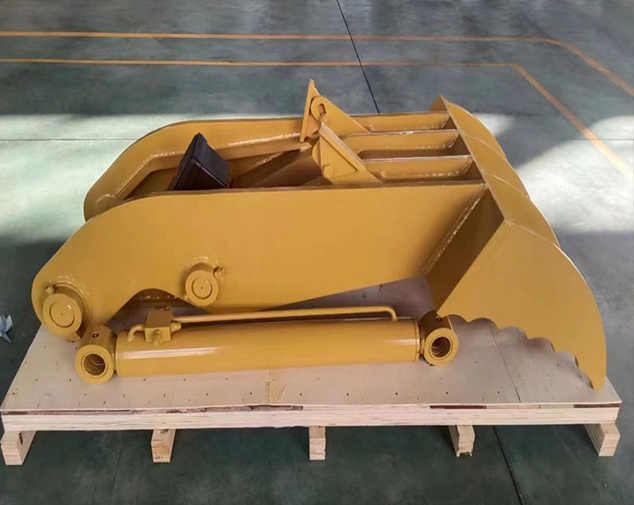

Hydraulic Power Thumb
Specifications
| Item/Model | Unit | JSPT02M | JSPT02M | JSPT04 | JSPT04M | JSPT06 | USPT06M | JSPT08 | JSPT08M |
| Suitable Excavator | ton | 3-5 | 3-5 | 6-9 | 6-9 | 9-16 | 9-16 | 18-26 | 18-26 |
| Length | mm | 500-800 | 500-800 | 800-1300 | 800-1300 | 900-1500 | 900-1500 | 1000-2000 | 1000-2000 |
| Width | mm | 300-600 | 300-600 | 400-800 | 400-800 | 500-1000 | 500-1000 | 600-130 | 600-130 |
| Heigth | mm | 180-300 | 180-300 | 200-280 | 200-280 | 250-380 | 250-380 | 260-400 | 260-400 |
| Working Pressure | bar | 180 | – | 180 | – | 250 | – | 280 | – |
| Working Flow | lpm | 35-55 | – | 50-100 | – | 90-110 | – | 100-140 | – |
Benefits & Features
Applicable objects – auxiliary operation for material grabbing.
Main features – using Q345 manganese plate steel, high strength and corrosion resistance; The oil cylinder adopts honing tube, imported HALLiTE oll seal, short working cycle and long life.
