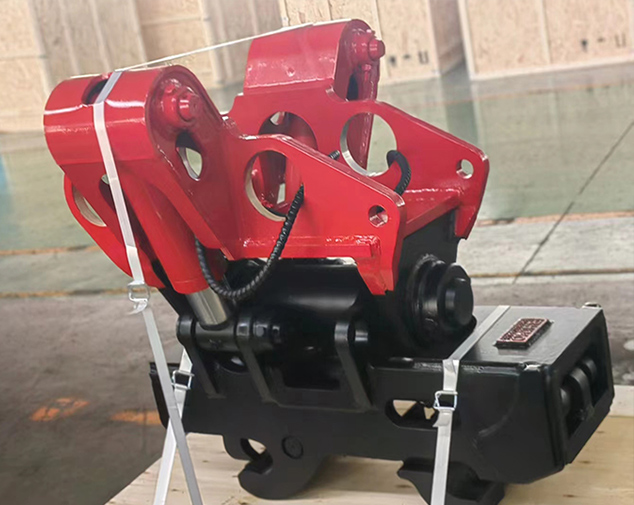

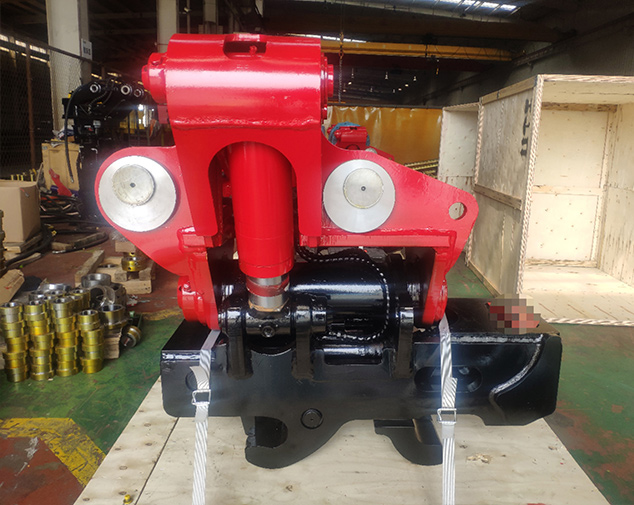

Hydraulic Quick Hitch (Double Lock Type)
Specifications
| Item/Model | Unit | JS20P | JS20PM | JS25P | JJS25PM | JS30P | JS30PM | JS35P | JS35PM |
| Suitabie Ecavatar | ton | 1-2 | 1-2 | 2-3 | 2-3 | 2-3 | 2-3 | 3-4 | 3-4 |
| Weight | mm | 25-40 | 25-40 | 25-40 | 25-40 | 25-40 | 25-40 | 25-40 | 25-40 |
| Length | mm | 400-450 | 400-450 | 400-450 | 400-450 | 400-450 | 400-450 | 400-450 | 400-450 |
| Height | mm | 260 | 260 | 260 | 260 | 260 | 270 | 270 | 270 |
| Width | mm | 180-220 | 180-220 | 180-220 | 180-220 | 180-220 | 180-220 | 180-220 | 180-220 |
| Pin to Pin Center Distance | mm | 80-150 | 80-150 | 80-150 | 80-150 | 160-220 | 160-220 | 160-220 | 160-220 |
| Farearm Open Width | mm | 80-140 | 80-140 | 80-140 | 80-140 | 80-140 | 80-140 | 80-140 | 80-140 |
| Oil cylinder telescopic distance competition | mm | 170-206 | 170-206 | 170-206 | 170-206 | 170-206 | 170-206 | 170-206 | 170-206 |
| top to Bottom pin Distance | mm | 165 | 165 | 165 | 165 | 165-170 | 165-170 | 165-170 | 165-170 |
| Pin Diameter | mm | 20 | 20 | 25 | 25 | 30 | 30 | 35 | 35 |
| Working Pressure | ber | 32-40 | – | 32-40 | – | 32-40 | – | 32-40 | – |
| Working Flow | lpm | 10-20 | – | 10-20 | – | 10-20 | – | 10-20 | – |
| Item/Model | Unit | JS40P | JS40PM | JS45P | JS45PM | JS50P | JS50PM | JS55P | JS55PM |
| Suitabie Ecavatar | ton | 3-4 | 3-4 | 4-7 | 4-7 | 5-8 | 5-8 | 5-8 | 5-8 |
| Weight | mm | 25-40 | 25-40 | 50-60 | 50-60 | 85 | 85 | 85 | 85 |
| Length | mm | 400-450 | 534-545 | 534-545 | 534-545 | 600 | 600 | 600 | 600 |
| Height | mm | 270 | 270 | 310 | 310 | 345 | 345 | 345 | 345 |
| Width | mm | 180-220 | 180-220 | 258-263 | 258-263 | 270-280 | 270-280 | 270-280 | 270-280 |
| Pin to Pin Center Distance | mm | 160-220 | 160-220 | 230-270 | 230-270 | 290-360 | 290-360 | 290-360 | 290-360 |
| Farearm Open Width | mm | 80-140 | 80-140 | 145-170 | 145-170 | 180-200 | 180-200 | 180-200 | 180-200 |
| Oil cylinder telescopic distance competition | mm | 170-206 | 170-206 | 205-275 | 205-275 | 340-450 | 340-450 | 340-450 | 340-450 |
| top to Bottom pin Distance | mm | 165-170 | 165-170 | 200 | 200 | 230 | 230 | 230 | 230 |
| Pin Diameter | mm | 40 | 40 | 45 | 45 | 50 | 50 | 55 | 55 |
| Working Pressure | ber | 32-40 | – | 32-40 | – | 32-40 | – | 32-40 | – |
| Working Flow | lpm | 10-20 | – | 10-20 | – | 10-20 | – | 10-20 | – |
| Item/Model | Unit | JS60P | JS60PM | JS70P | JS80P | JS90P | JS100P | JS110P | JS120P |
| Suitabie Ecavatar | ton | 9-16 | 9-16 | 18-24 | 18-24 | 26-30 | 30-40 | 35-45 | 40-50 |
| Weight | mm | 150-180 | 150-180 | 290-330 | 290-330 | 420-430 | 450-580 | 500-750 | 1000-1100 |
| Length | mm | 800 | 800 | 924-977 | 924-977 | 983-1050 | 1006-1473 | 1006-1473 | 1300-1500 |
| Height | mm | 410 | 410 | 492 | 492 | 574 | 558-610 | 558-610 | 800 |
| Width | mm | 353-436 | 353-436 | 449-483 | 449-483 | 543-568 | 606-663 | 606-663 | 600-700 |
| Pin to Pin Center Distance | mm | 380-420 | 380-420 | 460-480 | 460-480 | 473-540 | 550-620 | 550-620 | 570-620 |
| Farearm Open Width | mm | 180-200 | 180-200 | 306-340 | 306-340 | 375-411 | 416-469 | 416-469 | 450-500 |
| Oil cylinder telescopic distance competition | mm | 340-486 | 340-486 | 256-390 | 256-390 | 413-590 | 520-590 | 520-590 | 440-520 |
| top to Bottom pin Distance | mm | 250 | 250 | 275 | 275 | 300 | 360 | 360 | 510 |
| Pin Diameter | mm | 60 | 60 | 70 | 80 | 90 | 110 | 110 | 120 |
| Working Pressure | ber | 32-40 | – | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 | 32-40 |
| Working Flow | lpm | 10-20 | – | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Benefits & Features
Applicable objects – Cooperate with various types of excavators to assist quick change operation.
Main features – using NM400 plate steel, high strength and corrosion resistance; The pin is made of 42CrMo alloy steel with high strength and toughness; The oil cylinder adopts honing tube, imported HALLiTE oil seal, short working cycle and long life.
